NookBook

NoteBook-NP1415-TU-SCD Get More Information

Core Selling Points

  • Multi-color plastic housing options: Star-Gray, Mint-Green, Light-red
  • Flexible cooling design: Dual Fans or Single Fan configurations available
  • HD built-in camera with privacy shutter, stable smooth video experience
  • Ultra thin & lightweight body for easy portability
  • Super narrow bezel screen, higher screen-to-body ratio
  • Optional keyboard types: Round Key Caps or Square Key Caps
  • Large-capacity battery supporting ultra-long standby time
  • Built-in WiFi 6 / WiFi 6E high-speed wireless module


Full Product Specifications

Processor Options

  1. Intel Alder Lake N series: N305 / N300 / N200 / N150 / N100 / N95
  2. Intel Alder Lake / Raptor Lake U series: 1235U / 1335U (15W~28W TDP)
  3. AMD RMB H / RMB+ H / PHX H / HPT H series: 7430U / 7735HS
  4. Intel MTL / ARL-U/H series: 155U / 155H


Body & Appearance

  • Thickness: 19.9mm
  • Screen opening angle: Support 180° flat opening
  • Net weight: 1.5kg ~ 2.0kg
  • Form Factor: Clamshell laptop, base model 14.1-inch


Display Panel

  • Screen size optional: 14'' / 15.6'' / 16.0'' / 17.3'' / 18.5''
  • Resolution optional: HD / FHD / QHD


Storage & Memory

  • RAM: 8GB ~ 32GB
  • Storage: 256GB eMMC / M.2 2280 PCIe4.0×4 SSD slot (1 slot reserved)


Wireless Connectivity

  • Basic WiFi: IEEE802.11 a/b/g/n/ac 1*1, 2.4G WiFi + Bluetooth 4.2
  • High-speed version: WiFi 6 / WiFi 6E (vPro supported)


I/O Interface Ports

  • 3 × USB3.0
  • 2 × USB Type-C
  • 1 × 3.5mm standard audio headphone jack
  • 1 × HDMI video output port
  • 1 × Micro SD 4.0 card reader slot
  • RJ45 Gigabit Ethernet port (optional configuration)


Camera Module

  • Optional 1M / 2M pixel front camera
  • Equipped with physical privacy shutter door


Battery Capacity

  • 14-inch model: 51.3Wh battery
  • 15.6'' / 16.0'' / 17.3'' models: 62.7Wh battery

Power Adapter

  • TDP 6–15W configuration: 36W DC adapter
  • TDP 28W configuration: 65W DC adapter
  • TDP 45W configuration: 100W DC adapter


Operating System

  • Pre-installed Windows 11


Product Visual Description

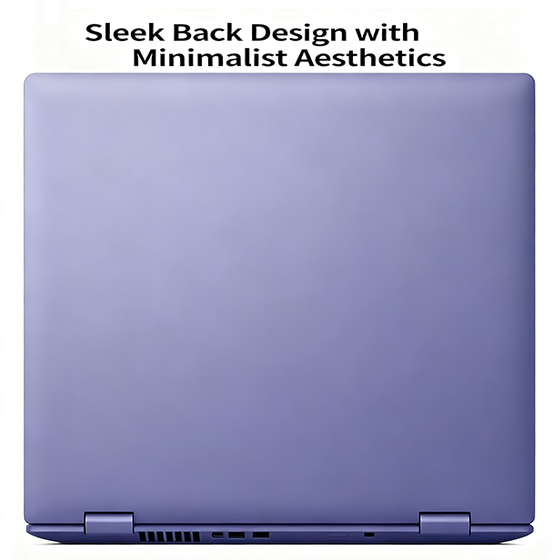

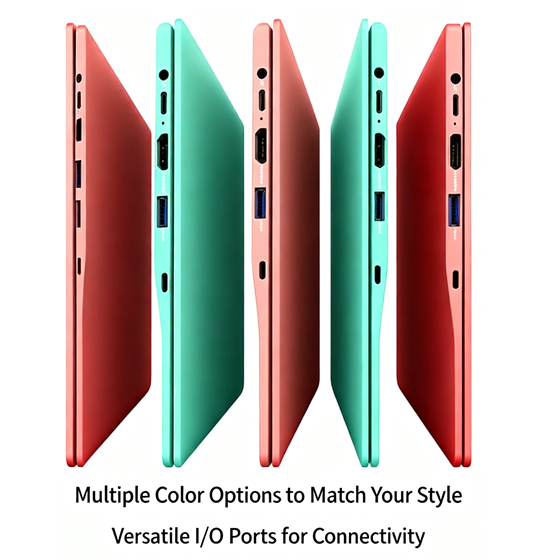

  1. Ultra-slim clamshell notebook with full-color metal-look plastic chassis, available in star gray, mint green and light red

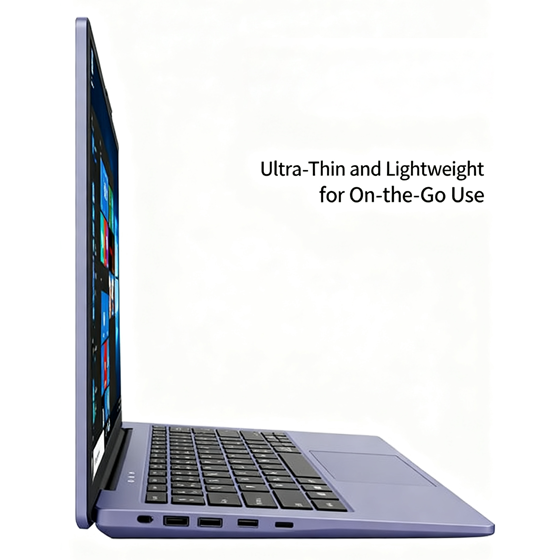

  2. Side I/O layout with complete rich interfaces, supports wired network expansion

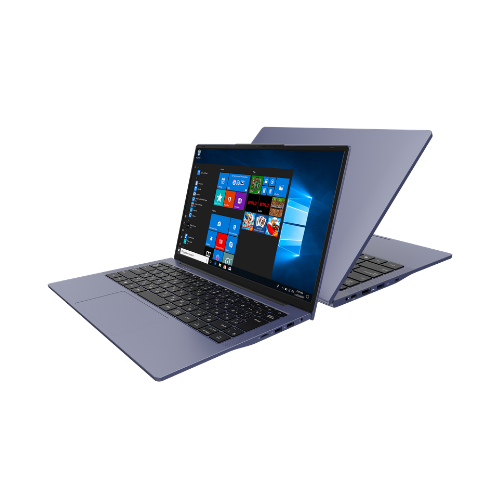

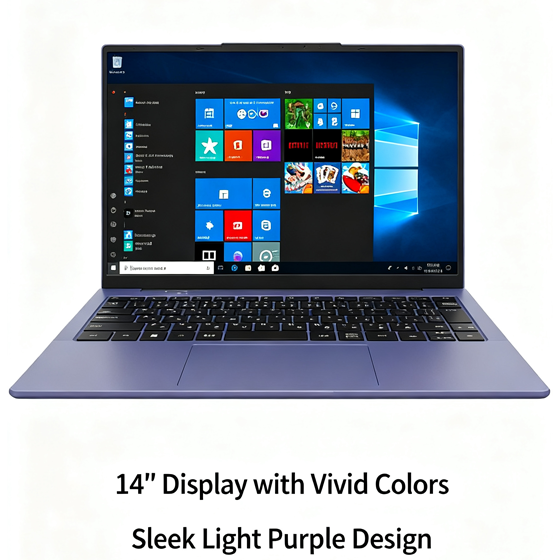

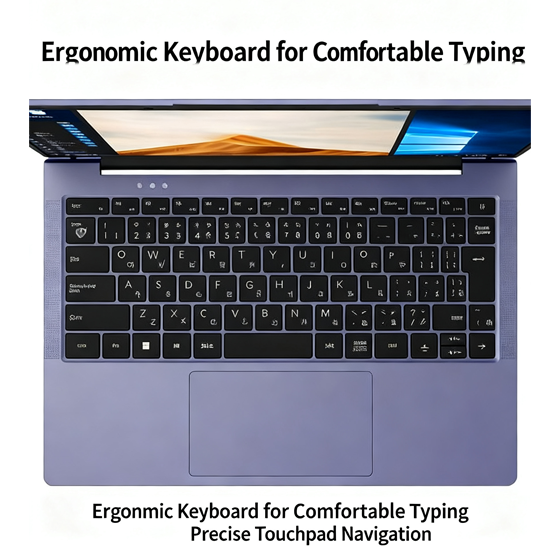

  3. Narrow bezel high-definition screen with desert landscape display demo, minimalist full-size keyboard design
